Product Details
| Product Code | CV2054 |
| Chassis (Front / Rear) | Front |
| Position | Outer Left And Right |
| Weight | 0,548 kg / 1.209 lb |
| Tie Rod Assembly 4 | 213 mm / 8.39 inch |
| Length | M17X1,5 |
| Body Thread Size | 7/16" 20 UNF |
| Ball Pin Thread Size | Ø11,35 |
| Tie Rod Assembly 3 | |
| Ball Pin Cone Diameter | |
| Tie Rod Assembly 1 | |
| Tie Rod Assembly 2 | |
| Tie Rod Assembly 5 | |
| Note | Blazer, S-10 Pickup And Jimmy : 2Wd |
Linked Vehicles

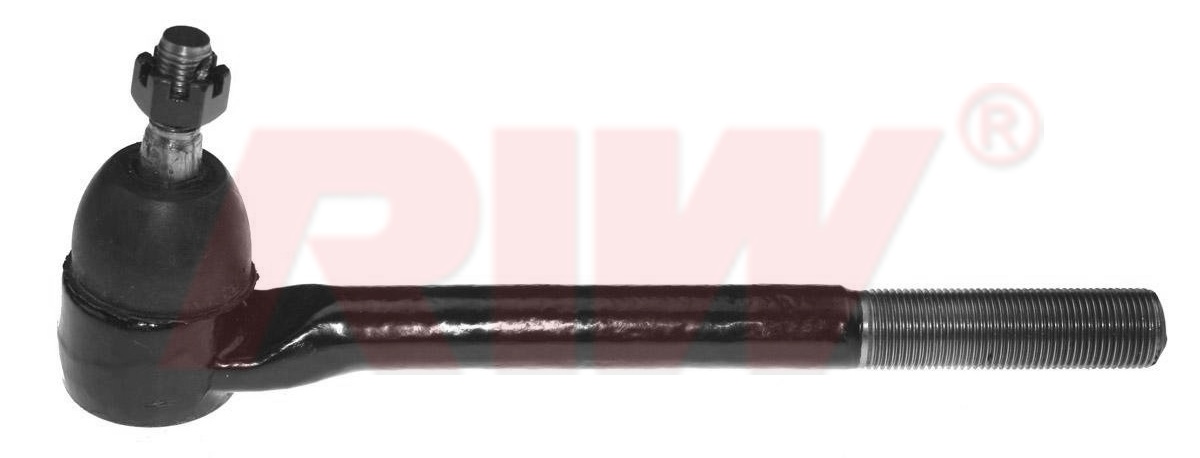

CV2054 / TIE ROD END
| MAKE | MODEL | BODY TYPE & YEAR |
|---|---|---|
| CHEVROLET | BLAZER | 1995 - 2005 |
| CHEVROLET | S-10 | PICKUP 1994 - 2005 |
| GMC | JIMMY | IV 1995 - 2005 |
| GMC | SONOMA | 1994 - 2004 |
| ISUZU | HOMBRE | 1996 - 2000 |
OEM Codes
CV2054 / TIE ROD END
| OEM CODES |
|---|
