Home Catalog Control Arm SUZUKI SWIFT (IV FZ, NZ) 2010 - 2017 SUZUKI SWIFT (IV FZ, NZ) 2010 - 2017 Control Arm

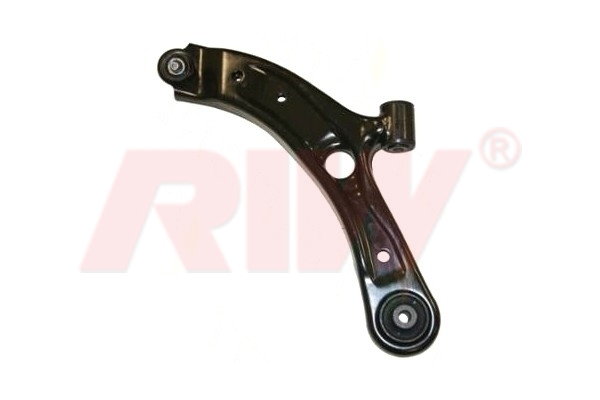

SZ6024 /

Control Arm

Front Lower Left /

SUZUKI

SWIFT

(IV FZ, NZ) 2010 - 2017

Go to catalog

SUZUKI SWIFT (IV FZ, NZ) 2010 - 2017 Control Arm

Assembly Parts

SZ1005
Ball Joint

‹ ›

Product Details

Product Code	SZ6024
Chassis (Front / Rear)	Front
Position	Lower Left
Other Side	SZ6023
Weight	2,7 kg / 5.953 lb
Material Type	Sheet Metal
Ball Joint Cone Size [mm]
Ball Joint BallPin Thread Size
Note

Other Parts of the Linked Vehicles

SUZUKI SWIFT IV FZ, NZ 2010 - 2017

PRODUCT CODE	PRODUCT NAME	POSITION
SZ1005	BALL JOINT	FRONT LOWER LEFT AND RIGHT
SZ2018	TIE ROD END	FRONT RIGHT
SZ2019	TIE ROD END	FRONT LEFT
SZ3012	AXIAL JOINT	FRONT LEFT AND RIGHT
SZ4008	LINK STABILIZER	FRONT LEFT AND RIGHT
SZ6023	CONTROL ARM	FRONT LOWER RIGHT

Also Fits In

SZ6024 / CONTROL ARM

MAKE	MODEL	BODY TYPE & YEAR
SUZUKI	SWIFT	IV FZ, NZ 2010 - 2017

OEM Codes

SZ6024 / CONTROL ARM

OEM CODES
45202-68L00 45202-71L00
