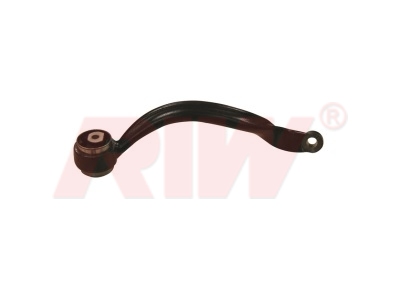

LAND ROVER RANGE ROVER Front Upper Right Control Arm

Home Catalog Control Arm LAND ROVER RANGE ROVER (III LM, L322) 2002 - 2012 LAND ROVER RANGE ROVER (III LM, L322) 2002 - 2012 Control Arm

LR6009 /

Control Arm

Front Upper Right /

LAND ROVER

RANGE ROVER

(III LM, L322) 2002 - 2012

Go to catalog

LAND ROVER RANGE ROVER (III LM, L322) 2002 - 2012 Control Arm

Assembly Parts

LR11001
Control Arm Bushing

‹ ›

Product Details

Product Code	LR6009
Chassis (Front / Rear)	Front
Position	Upper Right
Other Side	LR6010
Weight	4,075 kg / 8.984 lb
Material Type	Forged Steel
Ball Joint Cone Size [mm]
Ball Joint BallPin Thread Size
Note

Other Parts of the Linked Vehicles

LAND ROVER RANGE ROVER III LM, L322 2002 - 2012

PRODUCT CODE	PRODUCT NAME	POSITION
LR1009	BALL JOINT	FRONT UPPER LEFT AND RIGHT
LR2009	TIE ROD END	FRONT LEFT AND RIGHT
LR3004	AXIAL JOINT	FRONT LEFT AND RIGHT
LR20093004	TIE ROD ASSEMBLY	FRONT LEFT AND RIGHT
LR4012	LINK STABILIZER	FRONT LEFT AND RIGHT
LR4013	LINK STABILIZER	FRONT LEFT AND RIGHT
LR4014	LINK STABILIZER	REAR LEFT AND RIGHT
LR6007	CONTROL ARM	FRONT LOWER LEFT AND RIGHT
LR6010	CONTROL ARM	FRONT UPPER LEFT
LR10001	CONTROL ARM BUSHING	REAR
LR11001	CONTROL ARM BUSHING	UPPER LEFT AND RIGHT
LR11031	CONTROL ARM BUSHING	FRONT LOWER
LR11019	STABILIZER BAR BUSHING	REAR LEFT AND RIGHT
LR11003	ENGINE CRADLE (TRAVERSE) BUSHING	REAR LEFT AND RIGHT
LR11004	ENGINE CRADLE (TRAVERSE) BUSHING	REAR LEFT AND RIGHT
LR12015	ENGINE CRADLE (TRAVERSE) BUSHING	REAR LEFT AND RIGHT
LR12016	ENGINE CRADLE (TRAVERSE) BUSHING	REAR LEFT AND RIGHT
LR12054	REAR CARRIER (TORSION) BUSHING
LR12053	STABILISER MOUNTING	FRONT
LR12053K	STABILISER MOUNTING	FRONT
LR12041	STRUT MOUNTING	REAR
LR12044	STRUT MOUNTING	REAR
LR12027	ENGINE MOUNTING	FRONT RIGHT
LR12028	ENGINE MOUNTING	FRONT LEFT
LR12051	PROPSHAFT (DRIVESHAFT) MOUNTING
BW13001	STEERING BELLOW	FRONT

Also Fits In

LR6009 / CONTROL ARM

MAKE	MODEL	BODY TYPE & YEAR
LAND ROVER	RANGE ROVER	III LM, L322 2002 - 2012

OEM Codes

LR6009 / CONTROL ARM

OEM CODES
LR018343 RBJ000120
