Home Catalog Control Arm BMW 3 SERIES (E36, Z3) 1990 - 1998 BMW 3 SERIES (E36, Z3) 1990 - 1998 Control Arm

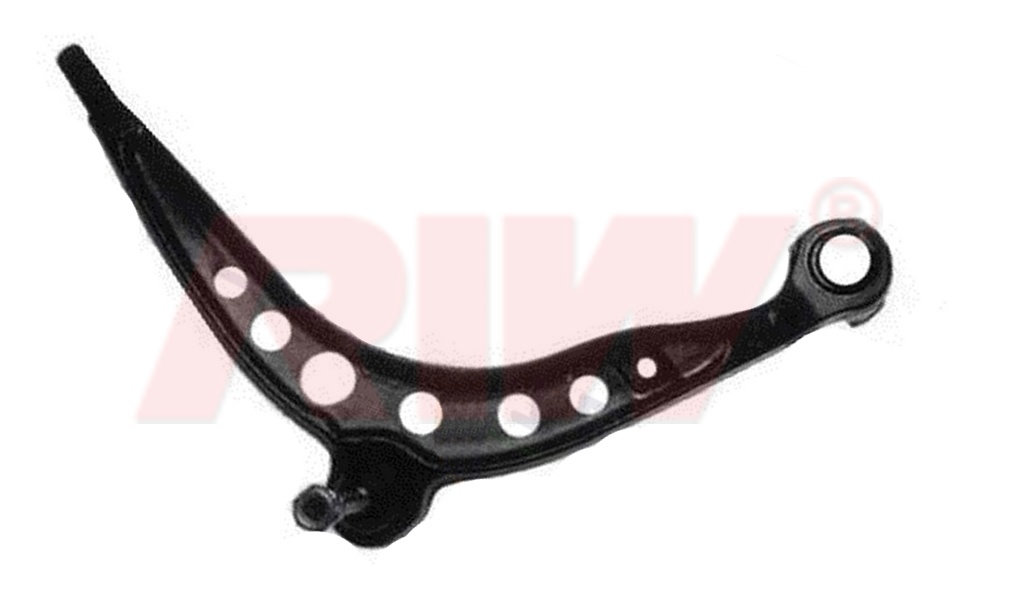

BW6004J /

Control Arm

Front Lower Left /

BMW

3 SERIES

(E36, Z3) 1990 - 1998

Go to catalog

BMW 3 SERIES (E36, Z3) 1990 - 1998 Control Arm

Assembly Parts

BW1001
Ball Joint

‹ ›

Product Details

Product Code	BW6004J
Chassis (Front / Rear)	Front
Position	Lower Left
Other Side	BW6003J
Weight	3,154 kg / 6.954 lb
Material Type	Casting
Ball Joint Cone Size [mm]	Ø14,9
Ball Joint BallPin Thread Size	M14X1,5
Note

Other Parts of the Linked Vehicles

BMW 3 SERIES E36, Z3 1990 - 1998

PRODUCT CODE	PRODUCT NAME	POSITION
BW1001	BALL JOINT	FRONT LOWER LEFT AND RIGHT
BW1003	BALL JOINT	FRONT LOWER LEFT AND RIGHT
BW1004	BALL JOINT	FRONT LOWER OUTER LEFT AND RIGHT
BW2007	TIE ROD END	FRONT RIGHT
BW2008	TIE ROD END	FRONT LEFT
BW3817	AXIAL JOINT	FRONT LEFT AND RIGHT
BW8009	REPAIR KIT	LEFT AND RIGHT
BW20073817	TIE ROD ASSEMBLY	FRONT RIGHT
BW20083817	TIE ROD ASSEMBLY	FRONT LEFT
BW4005	LINK STABILIZER	FRONT LEFT AND RIGHT
BW4006	LINK STABILIZER	REAR LEFT AND RIGHT
BW4016	LINK STABILIZER	FRONT LEFT AND RIGHT
BW6003	CONTROL ARM	FRONT LOWER RIGHT
BW60036004K	CONTROL ARM	FRONT LOWER LEFT AND RIGHT
BW6003J	CONTROL ARM	FRONT LOWER RIGHT
BW6003K	CONTROL ARM	FRONT LOWER RIGHT
BW6004	CONTROL ARM	FRONT LOWER LEFT
BW6004K	CONTROL ARM	FRONT LOWER LEFT
BW9005	CONTROL ARM	REAR LOWER LEFT AND RIGHT
BW10002	CONTROL ARM BUSHING	LEFT AND RIGHT
BW11001	CONTROL ARM BUSHING	INNER LEFT AND RIGHT
BW11013	CONTROL ARM BUSHING	LEFT AND RIGHT
BW11021	CONTROL ARM BUSHING	OUTER RIGHT
BW11022	CONTROL ARM BUSHING	OUTER LEFT
BW11025	CONTROL ARM BUSHING	RIGHT
BW11026	CONTROL ARM BUSHING	LEFT
BW11048	CONTROL ARM BUSHING	REAR INNER LEFT AND RIGHT
BW11066	CONTROL ARM BUSHING	REAR LOWER LEFT AND RIGHT
BW11802	CONTROL ARM BUSHING	LEFT AND RIGHT
BW11092	STABILIZER BAR BUSHING
BW12042	ENGINE CRADLE (TRAVERSE) BUSHING	REAR LEFT AND RIGHT
BW11061	AXLE SUPPORT BUSHING	LEFT AND RIGHT
BW12025	REAR CARRIER (TORSION) BUSHING	REAR LEFT AND RIGHT
BW12026	REAR CARRIER (TORSION) BUSHING	REAR LEFT AND RIGHT
BW12002	STABILISER MOUNTING	FRONT LEFT AND RIGHT
BW12002K	STABILISER MOUNTING	FRONT LEFT AND RIGHT
BW12004	STABILISER MOUNTING	FRONT LEFT AND RIGHT
BW12004K	STABILISER MOUNTING	FRONT LEFT AND RIGHT
BW12036	STABILISER MOUNTING	FRONT LEFT AND RIGHT
BW12036K	STABILISER MOUNTING	FRONT LEFT AND RIGHT
BW12015	STRUT MOUNTING	LEFT AND RIGHT
BW12015K	STRUT MOUNTING	LEFT AND RIGHT
BW12137	STRUT MOUNTING	FRONT
BW12138	STRUT MOUNTING	FRONT
BW12012	ENGINE MOUNTING	LEFT AND RIGHT
BW12016	ENGINE MOUNTING	LEFT AND RIGHT
BW12064	ENGINE MOUNTING	FRONT
BW12065	ENGINE MOUNTING	FRONT
BW12082	ENGINE MOUNTING	FRONT
BW12104	TRANSMISSION MOUNTING	REAR
BW12105	TRANSMISSION MOUNTING	FRONT RIGHT
BW12106	TRANSMISSION MOUNTING	FRONT
BW12108	TRANSMISSION MOUNTING	FRONT
BW12109	TRANSMISSION MOUNTING	FRONT
BW12013	PROPSHAFT (DRIVESHAFT) MOUNTING	LEFT AND RIGHT
BW12022	PROPSHAFT (DRIVESHAFT) MOUNTING	LEFT AND RIGHT
BW12122	PROPSHAFT (DRIVESHAFT) MOUNTING
BW11020	STEERING MOUNTING	LEFT AND RIGHT

Also Fits In

BW6004J / CONTROL ARM

MAKE	MODEL	BODY TYPE & YEAR
BMW	3 SERIES	E36, Z3 1990 - 1998
BMW	Z3	ROADSTER E36 1995 - 2003
BMW	Z3	COUPE E36 1997 - 2003

OEM Codes

BW6004J / CONTROL ARM

OEM CODES
31121140399* 31121140957* 31126758513*
