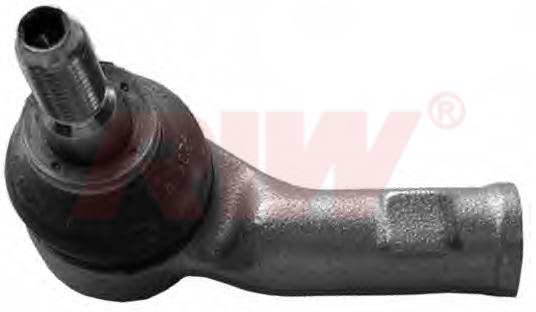

VOLKSWAGEN GOLF (IV MK4, A4) 1998 - 2003 Tie Rod End
Assembly Parts
Product Details
Product Code AU2318
Chassis (Front / Rear) Front
Position Left
Other Side AU2319
Weight 0,312 kg / 0.688 lb
Length 76 mm / 3 inch
Body Thread Size M14X1,5
Ball Pin Thread Size M12X1,5
Ball Pin Cone Diameter Ø13,4
Note Ch. No:-->8L-W-050-422
Other Parts of the Linked Vehicles
VOLKSWAGEN GOLF IV MK4, A4 1998 - 2003
IMAGE PRODUCT CODE PRODUCT NAME POSITION
volkswagen-golf-iv-mk4-a4-1998-2003-ball-joint AU1013 BALL JOINT FRONT LOWER LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-ball-joint AU1014 BALL JOINT FRONT LOWER RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-ball-joint AU1014K BALL JOINT FRONT LOWER RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-ball-joint AU1015 BALL JOINT FRONT LOWER LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-ball-joint AU1015K BALL JOINT FRONT LOWER LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-end AU2009 TIE ROD END FRONT RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-end AU2010 TIE ROD END FRONT LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-end AU2319 TIE ROD END FRONT RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-axial-joint AU3001 AXIAL JOINT FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-axial-joint AU3003 AXIAL JOINT FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-axial-joint AU3004 AXIAL JOINT FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-repair-kit VW8001 REPAIR KIT FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-repair-kit VW8003 REPAIR KIT FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-assembly AU20093001 TIE ROD ASSEMBLY FRONT RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-assembly AU20093004 TIE ROD ASSEMBLY FRONT RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-assembly AU20103001 TIE ROD ASSEMBLY FRONT LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-assembly AU20103004 TIE ROD ASSEMBLY FRONT LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-assembly AU23183003 TIE ROD ASSEMBLY FRONT RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-assembly AU23183004 TIE ROD ASSEMBLY FRONT LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-assembly AU23193003 TIE ROD ASSEMBLY FRONT LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-tie-rod-assembly AU23193004 TIE ROD ASSEMBLY FRONT RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-link-stabilizer AU4005 LINK STABILIZER FRONT LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-link-stabilizer AU4006 LINK STABILIZER FRONT RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-link-stabilizer AU4021 LINK STABILIZER REAR LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-link-stabilizer VW4010 LINK STABILIZER FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-link-stabilizer VW4011 LINK STABILIZER FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-link-stabilizer VW4012 LINK STABILIZER FRONT RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-link-stabilizer VW4013 LINK STABILIZER FRONT LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-link-stabilizer VW4020 LINK STABILIZER FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-control-arm AU6008 CONTROL ARM FRONT LOWER RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-control-arm AU6008J CONTROL ARM FRONT LOWER RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-control-arm AU6009 CONTROL ARM FRONT LOWER LEFT
volkswagen-golf-iv-mk4-a4-1998-2003-control-arm SE9003 CONTROL ARM REAR LOWER AND UPPER LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-control-arm-bushing AU11002 CONTROL ARM BUSHING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-control-arm-bushing AU11005 CONTROL ARM BUSHING FRONT CENTER LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-control-arm-bushing VW11036 CONTROL ARM BUSHING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabilizer-bar-bushing AU11023 STABILIZER BAR BUSHING REAR
volkswagen-golf-iv-mk4-a4-1998-2003-stabilizer-bar-bushing VW11090 STABILIZER BAR BUSHING FRONT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-cradle-traverse-bushing VW12012 ENGINE CRADLE (TRAVERSE) BUSHING REAR LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-cradle-traverse-bushing VW12012K ENGINE CRADLE (TRAVERSE) BUSHING REAR LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-cradle-traverse-bushing VW12013 ENGINE CRADLE (TRAVERSE) BUSHING REAR LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-cradle-traverse-bushing VW12056 ENGINE CRADLE (TRAVERSE) BUSHING REAR LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-cradle-traverse-bushing VW12056K ENGINE CRADLE (TRAVERSE) BUSHING REAR LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-axle-support-bushing VW11008 AXLE SUPPORT BUSHING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-rear-carrier-torsion-bushing VW12010 REAR CARRIER (TORSION) BUSHING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-rear-carrier-torsion-bushing VW12066 REAR CARRIER (TORSION) BUSHING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12016 STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12016K STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12020 STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12020K STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12047 STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12047K STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12048 STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12048K STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12052 STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12052K STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12064 STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12064K STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12117 STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-stabiliser-mounting VW12117K STABILISER MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-strut-mounting SK12002 STRUT MOUNTING REAR LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-strut-mounting VW12061 STRUT MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-strut-mounting VW12061A STRUT MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-strut-mounting VW12061K STRUT MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-strut-mounting VW12065 STRUT MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-strut-mounting VW12065K STRUT MOUNTING FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-strut-mounting VW12103 STRUT MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12030 ENGINE MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12040 ENGINE MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12070 ENGINE MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12075 ENGINE MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12081 ENGINE MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12084 ENGINE MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12085 ENGINE MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12092 ENGINE MOUNTING RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12100 ENGINE MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-engine-mounting VW12102 ENGINE MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-suspension-mounting VW12096 SUSPENSION MOUNTING LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-exhaust-mounting VW12135 EXHAUST MOUNTING
volkswagen-golf-iv-mk4-a4-1998-2003-steering-bellow VW13002 STEERING BELLOW FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-steering-bellow VW13002K STEERING BELLOW FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-steering-bellow VW13008 STEERING BELLOW FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-steering-bellow VW13010 STEERING BELLOW FRONT LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-axle-bellow FI14014 AXLE BELLOW FRONT INNER LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-axle-bellow RN14006 AXLE BELLOW FRONT OUTER LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-axle-bellow VW14003 AXLE BELLOW FRONT OUTER LEFT AND RIGHT
volkswagen-golf-iv-mk4-a4-1998-2003-shock-absorber-bellow VW15002 SHOCK ABSORBER BELLOW REAR
Also Fits In
AU2318 / TIE ROD END
MAKE MODEL BODY TYPE & YEAR
AUDI A3 8L1
1996 - 2003
SEAT LEON 1M1
1999 - 2006
SEAT TOLEDO II 1M2
1999 - 2006
SKODA OCTAVIA I 1U2
1996 - 2004
SKODA OCTAVIA I COMBI 1U5
1996 - 2004
VOLKSWAGEN BEETLE 9C1, 1C1
1998 - 2010
VOLKSWAGEN BORA 1998 - 2005
VOLKSWAGEN GOLF IV MK4, A4
1998 - 2003
VOLKSWAGEN JETTA MK4, A4
1999 - 2004
OEM Codes
AU2318 / TIE ROD END
OEM CODES
1J0422811
1J0422811A
